XSENS FLOW SOLUTIONS
XSENS AS ,established in 2013 and headquarted in Bergen, Norway, specializes in non-invasive ultrasonic flow measurement technology.
Originating from innovations at Christian Michelsen Research (now NORCE), the company offers clamp-on flow meters that provide accurate measurements of liquids, gases, and wet gas without the need for pipe penetration.

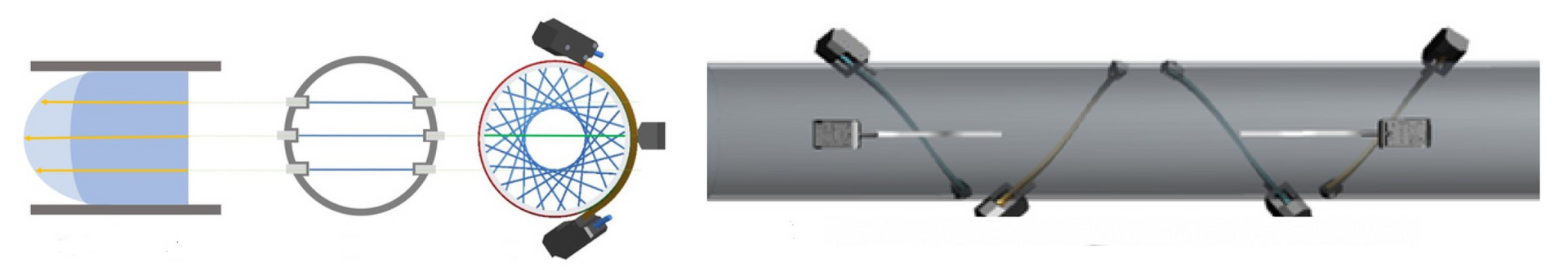

XSENS Flow Solution, in collaboration with Christian Michelsen Research AS (NORCE), has developed and patented a groundbreaking ultrasonic flow meter technology that utilizes helical signal transmission.
The innovation allows for off-center measurements and nearly tomographic pattern measurement, offering accuracy comparable to in-line multipath ultrasonic flow meters.
The revolutionary clamp-on flow meter simplifies installation, commissioning, and maintenance, providing similar performance to existing flow meters, but at a significantly lower installed cost and without the risk of potential leakage points.
Our clamp-on Flow Meter precisely measures the flow rate and fluid fraction of liquids (such as water cut), as well as the flow rate of gas and wet gas, both topside and subsea, form the outside of the pipe.

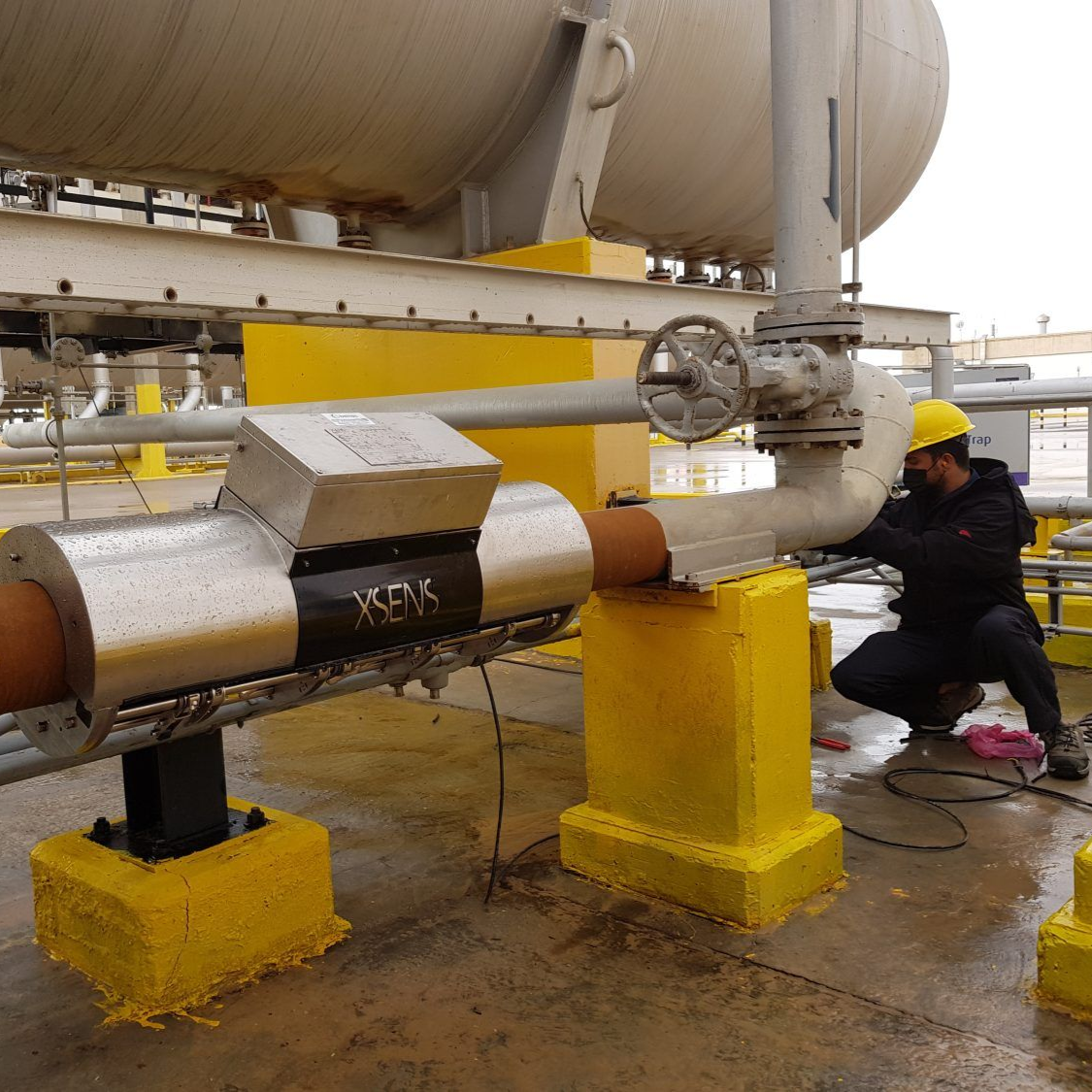

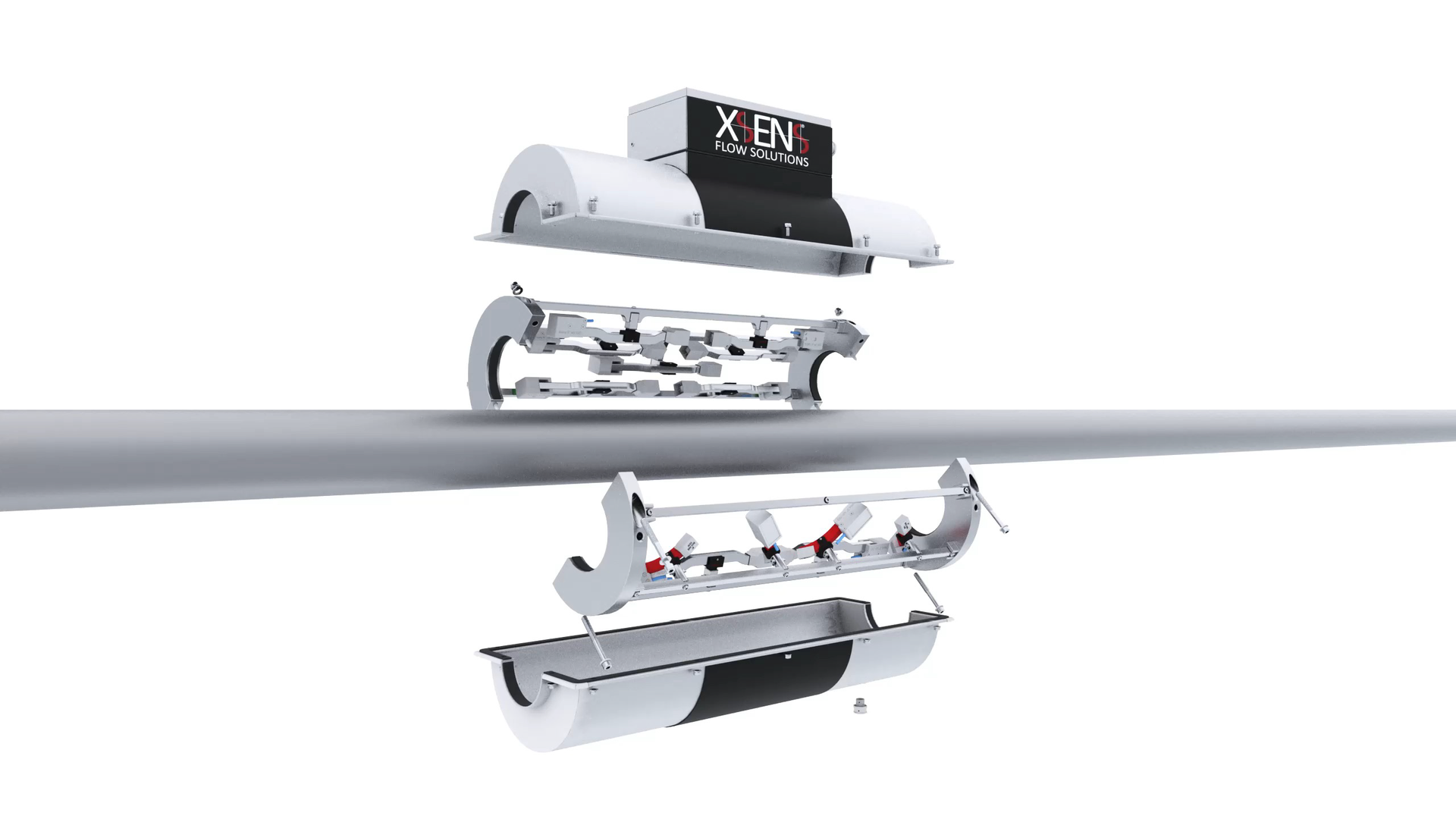

The meter is easily clamped onto the pipe's outer surface, requiring no pipe penetration or flanges, and can be installed without stopping production. Compared to traditional in-line meters,the clamp-on technology offers significant savings by reducing costs, preventing leaks, and minimizing downtime
Liquid Flow Rate & Water Cut
Measure water cut from 0-100% and flow rate with our 2-in-1 clamp-on meters.

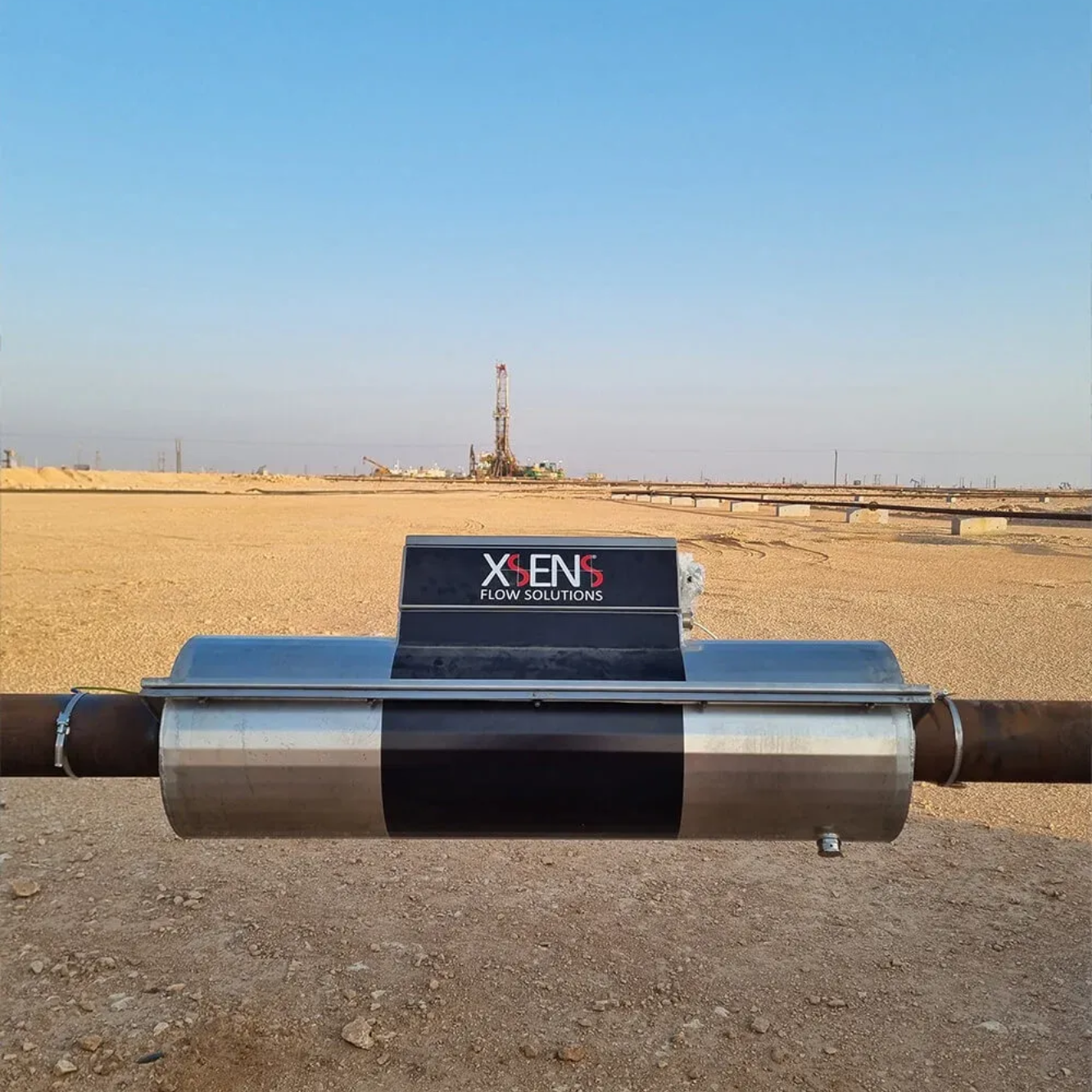

Water Cut
Measure water cut from 0-100% with a clamp-on design, offering high accuracy of +/- 1% absolute across the entire range.

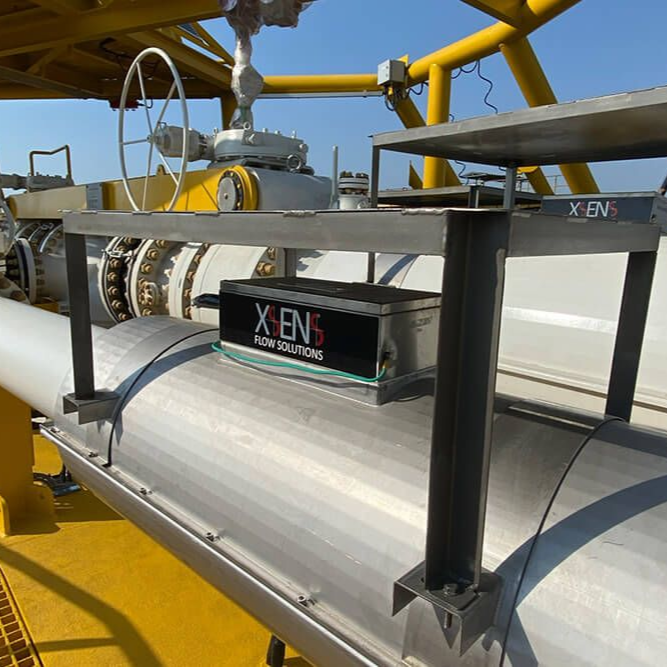

Liquid
Achieve highly accurate liquid flow measurement from the outside of the pipe using our clamp-on technology.
